- General
1.1 Certificates: SEMKO, CE, EAC, RCC, UL; UkrSEPRO
1.2 Electric ratings: AC690V, 25A, 32A, 80A;
1.3 Standard: IEC/EN 60947-2, IEC60947-4-1 - 3. Operating conditions
3.1 Temperature: -5℃～+40℃,
average temperature in 24 hours not exceed +35℃
3.2 Altitude: not exceed 2000m
3.3 Air conditions:
At mounting site, relative humidity not exceed 50% at the
max temperature of +40℃, higher relative humidity
is allowable under lower temperature,
for example, RH could be 90% at +20℃
3.4 Pollution grade: Grade Ⅲ
3.5 Trip class:
10A(NS2-25, NS2-25X, NS2-32, NS2-32X,NS2-32H)

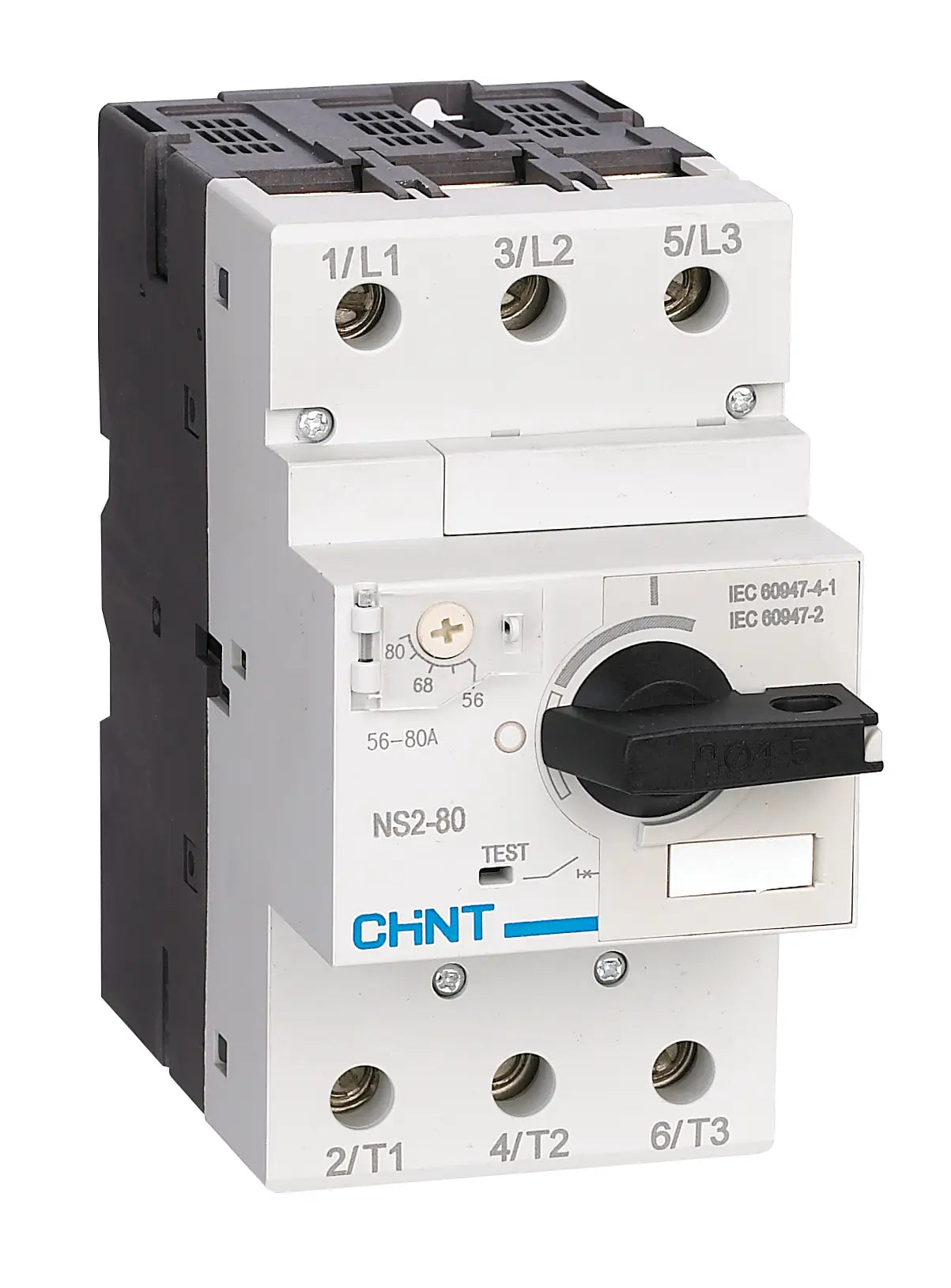

10 (NS2-80, NS2-80B)
3.6 Rated operational system:
Continuous operational system
3.7 Mounting conditions:
The inclination between the mounting plane
and the vertical plane shall not exceed 5°
The product shall be installed and operated at a place
without obvious shake, impact and vibration.
