Height 1420mm
Diameter 1050mm
Save water when backwashing your pool • Transparent UV-resistant tank • Ball valve and drainage tap excluded ,10 Year manufacturer’s guarantee.

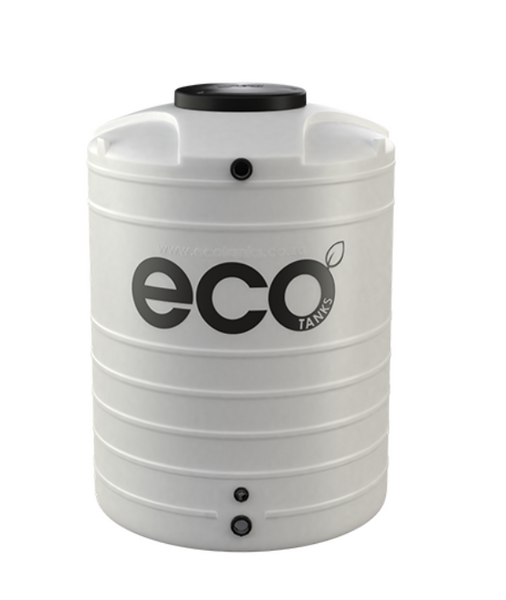

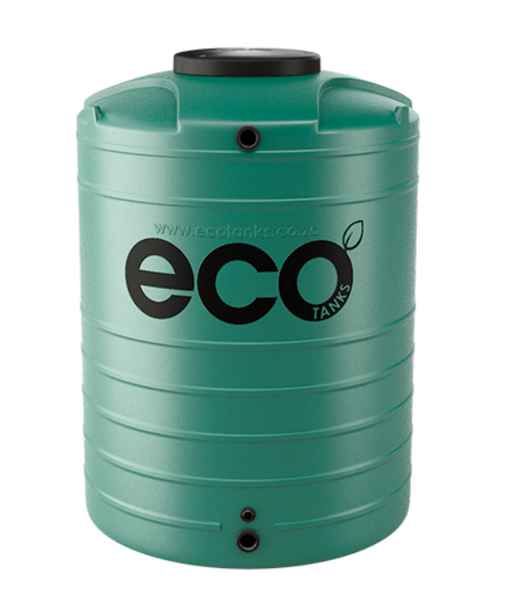

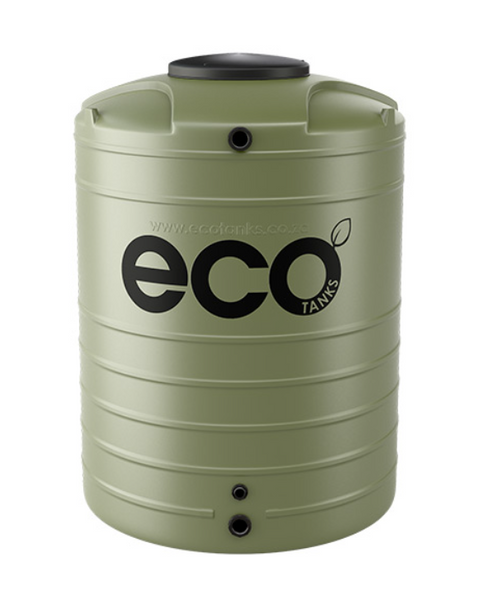

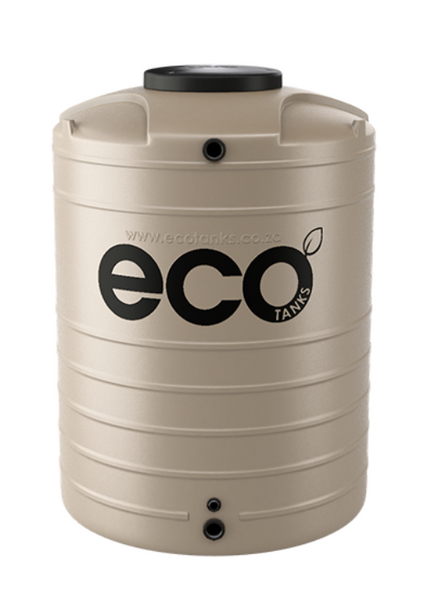

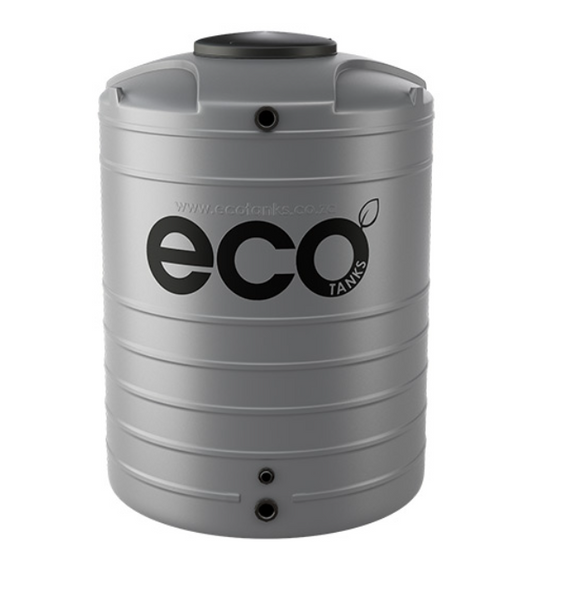

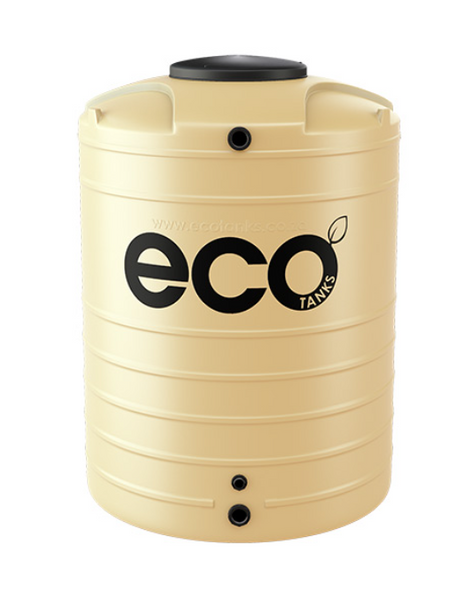

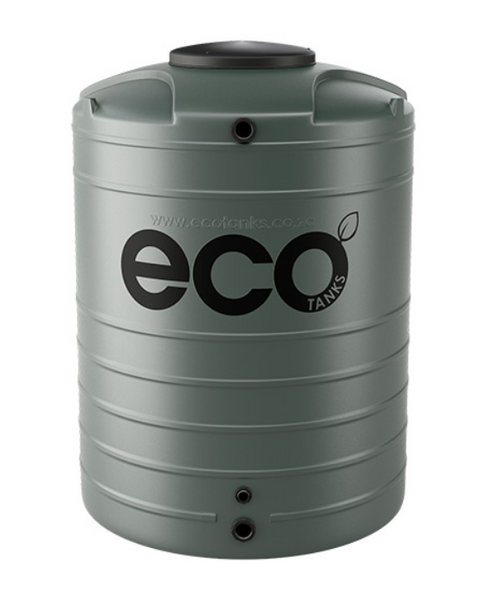

The Eco backwash tank is a translucent vertical 500l or 1000l tank. The difference between a backwash tank and a standard water tank is found in the configuration off the fittings. The backwash tank has a second 20mm outlet positioned 100mm above the standard tank bottom outlet. The standard bottom outlet is plugged with a stopper. While the higher 20mm outlet is fitted with a ball valve and garden clip hose fitting. The tank is manufactured in a natural translucent material to allow viewing of the water level.
What are the advantages?
- Up to 90% reduction in pool water top ups.
- Chemical consuption reduction due to the water being drained back to the pool with all the chemicals you’ve been adding.
- Backwash frequency can increase due to the water that is retained in the backwash tank.
- Between 500l and 1000l of valuable water is saved every backwash cycle. (Equivalent to an entire pool fill in one year)
- Families can enjoy the pool without the weight of water abuse and shortage in certain areas.
Flow Rates
Generally, the backwash and rinse cycles can be completed in 3-4 minutes.
0.56kw 13,000l/h @6m +/- 200l per minute
0.75kw 15,000l/h @6m +/- 250l per minute
1,10kw 18,000l/h @6m +/- 300l per Minute
Save between 500l and 1000l of valuable water every backwash cycle and reduce your pool water top ups by 90%.
Save water when backwashing your pool • Transparent UV-resistant tank • Ball valve and drainage tap excluded ,10 Year manufacturer’s guarantee.
